Service Transaxle
Transaxle Oil

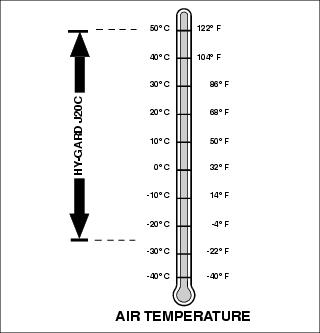

Use oil viscosity based on the expected air temperature range during the period between oil changes.
The following John Deere transmission and hydraulic oil is preferred:
Other oils may be used if recommended John Deere oil is not available, provided they meet one of the following specifications:
ˇ John Deere Standard JDM J20C
IMPORTANT: Avoid damage! DO NOT use engine oil, "Type F" (Red) Automatic Transmission Fluid, or BIO-HY-GARDŽ. DO NOT mix any other oils in this transmission. |
Changing Transaxle Oil
NOTE: Check oil level when transaxle is cold.
1. Park vehicle safely. (See Park Safely in the Safety section.)

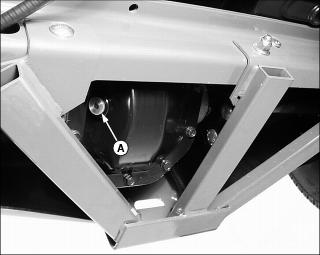

2. Clean area around fill/drain plug (A) located on the right side of the transaxle cover plate.
3. Loosen and remove fill/drain plug.
4. Remove oil by suction through fill/drain opening.
5. Add approximately 0.5 L (15 oz.) of oil into the fill opening.
ˇ Oil should be maintained level to 3 mm (1/8 in.) below the bottom of the fill/drain hole.
