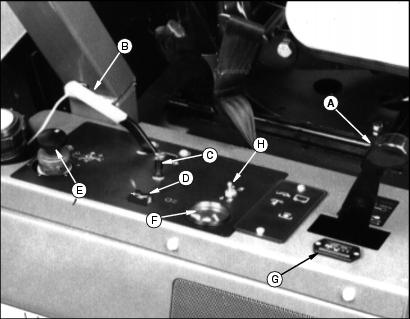

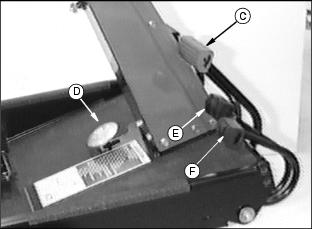

ControlsDash ControlsA - Hydraulic Control Lever - Raises/lowers attachments B - Throttle Lever - Controls engine speed C - Choke Lever - Chokes engine for starting D - PTO Switch - Engages attachments (rocker switch--150,001 - 160,000) (toggle switch--160,001 - ) Foot/Platform ControlsC - Park Brake Pedal - Engages Park Brake D - Differential Lock Pedal - Push For Improved Traction E - Forward Travel Pedal - Starts Machine Travel F - Reverse Travel Pedal - Backs Machine Console ControlsMiscellaneous Controls |
