Operating

· If you hit an object, stop the machine and inspect it. Make repairs before you operate. Keep machine and attachments properly maintained and in good working order. Keep all shields and guards in place.

· DO NOT leave machine unattended when it is running.

· Only operate during daylight or with good artificial light.

· Be careful of traffic when operating near or crossing roadways.

· DO NOT wear radio or music headphones while operating the machine. Safe operation requires your full attention.

Park Safely

· Stop machine on a level surface, not on a slope.

· Disengage PTO.

· Lower attachments to the ground.

· Engage park brake.

· STOP engine.

· Remove key.

· Before you leave the operator's seat, wait for engine and all moving parts to STOP.

Use Seat Belt Properly

MIF

Use a seat belt when you operate with a roll-over protective structure (ROPS) or cab to minimize chance of injury from an accident such as an overturn.

Do not use a seat belt if operating without a ROPS or cab.

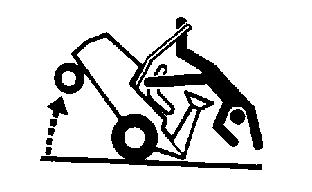

Avoid Tipping

MIF

· DO NOT drive where machine could slip or tip.

· Stay alert for holes and other hidden hazards in the terrain.

· Keep away from drop-offs.

· Slow down before you make a sharp turn or operate on a slope.

· When pulling loads or using heavy equipment, use only approved hitches, limit loads to those you can safely control, and use counterweights or wheel weights when required per this manual or your attachment manual.

· Drive up and down a hill-not across. Be careful when you change direction on a slope.

· DO NOT stop when going up hill or down hill. If machine stops going up hill, STOP PTO and back down slowly.

· DO NOT mow wet grass. Reduced traction could cause sliding.

· DO NOT try to stabilize the machine by putting your foot on the ground.

Operator Training Required

· Study operation section of this manual before operating the machine.

· Operate machine in an open, unobstructed area under the direction of an experienced operator.

· Learn the use of all controls.

· Operator experience is required to learn the moving, stopping, turning and other operating characteristics of the machine.

Keep Riders Off

MIF

· Only allow the operator on the machine. Keep riders off.

· Riders on the machine or attachment may be struck by foreign objects or thrown off the machine causing serious injury.

· Riders obstruct the operator's view resulting in the machine being operated in an unsafe manner.

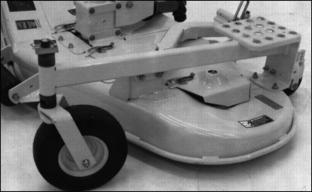

Mount And Dismount Safely

M47925

Use mower step when you mount or dismount.

Keep step and platform clean.

Rotating Blades Are Dangerous - Protect Children And Prevent Accidents

MIF

MIF

PROTECT CHILDREN:

· Never assume that children will remain where you last saw them. Children are attracted to mowing activity, stay alert to the presence of children.

· Keep children in the house when you are operating the machine.

· Turn machine off if a child enters the mowing area.

· Use extra care when you come to blind corners, shrubs, trees, or other objects that may block your vision.

· DO NOT let children or untrained person operate the machine.

· DO NOT carry or let children ride on machine or any attachment. DO NOT tow children in a cart or trailer.

HELP PREVENT SERIOUS OR FATAL ACCIDENTS:

· Be alert at all times, drive forward carefully. People ESPECIALLY CHILDREN can move quickly into the mowing area before you know it.

· Back carefully. Shut off PTO and look behind the machine carefully, ESPECIALLY FOR CHILDREN, before you back up.

· DO NOT mow in reverse unless it is absolutely necessary.

· Shut off PTO when you are not mowing.

· DO NOT operate machine if you are under the influence of drugs or alcohol.

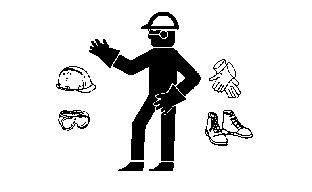

Wear Appropriate Clothing

MIF

· Wear close fitting clothing and safety equipment appropriate for the job.

· Loud noise can cause impairment or loss of hearing, wear a suitable protective device such as earplugs.

Stay Clear Of Rotating Drivelines

MIF

Entanglement in rotating driveline can cause serious injury or death:

· Wear close fitting clothing.

· STOP the engine and be sure PTO driveline is stopped before getting near it.

Check Wheel Bolts

· A serious accident could occur causing serious injury if wheel bolts are not tight.

· Check wheel bolt tightness often during the first 100 hours of operation.

Transport Safely

MIF

· Use safety lights and devices. Slow moving machines when driven on public roads are hard to see, especially at night. Avoid personal injury or death resulting from a collision with a vehicle.

· Whenever driving on public roads, use flashing warning lights and turn signals according to local regulations. Extra flashing warning lights may need to be installed.

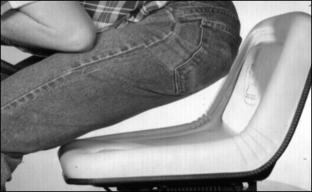

Lifting Seat

M38321

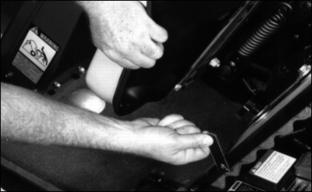

1. Push and hold tab on either side to the rear.

2. Lift seat to desired height.

Lowering Seat

M38661

1. Pull and hold lever to release latch.

2. Lower seat.

Adjusting Seat

M73593

1. Move lever (A) to the left and slide seat forward or rearward to the most comfortable position.

2. Release lever to LOCK seat in position.

3. Turn knob (B) clockwise for a harder (stiffer) ride or counterclockwise for a softer ride.

Indicator Lights And Gauges

M40509

· PTO indicator (A) will come on when PTO is engaged.

· Battery Discharge indicator (B) will come on when output is too low. If indicator comes on during operation, stop engine and perform appropriate service.

· Coolant Temperature indicator (C) will come on when engine is overheating.

· Oil Pressure indicator (D) will come on when engine oil pressure is too low. If indicator comes on during operation, stop engine and perform appropriate service.

Hour Meter

M38296

Check hour meter and Periodic Service Chart under hood daily to learn when your Front Mower needs service.

The hour meter shows number of hours engine has run.

The periodic service chart gives necessary service intervals.

After you have done ALL the services in an interval section, write the hours from hour meter and date in spaces provided.

Oil Pressure Indicator


IMPORTANT: Avoid damage! Do not use oil pressure indicator as a way to tell you that the engine oil is low. · Check daily using engine oil dipstick.

M40509

The oil pressure indicator light (A) will come on when the engine oil pressure is too low.

1. If the oil pressure indicator comes on during operation, STOP engine.

2. Check engine oil level. (See Checking Engine Oil Level in
Service Engine section.) Add oil if necessary.

3. Start engine. If indicator is still on, DO NOT operate Front Mower. STOP engine and see your John Deere dealer.

Battery Discharge Indicator

M40509

The battery discharge indicator light (A) will come on when
alternator output is too low.

1. If the battery discharge indicator comes on during operation, move throttle to FAST position. STOP engine if light remains on.

2. See Electrical System in Troubleshooting section to determine the cause. If problem cannot be corrected, see your John Deere dealer.

Water Temperature Indicator

M40509

The water temperature indicator light (A) will come on when engine coolant in radiator is above 220°F (107°C).

1. If the water temperature indicator comes on during operation, STOP engine.

2. See Engine in Troubleshooting section to determine the cause. If problem cannot be corrected, see your John Deere dealer.

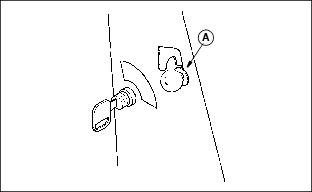

Using Park Brake

c CAUTION: Avoid injury! To avoid injury, always LOCK park brake before getting off tractor or leaving tractor unattended.

To LOCK the park brake:

M86249

· Move knob (A) to the bottom (C) of the slot.

· Push pedal down. Pedal will stay down.

To UNLOCK the park brake:

· Push and hold park brake pedal down.

· Move knob (A) to the top (B) of the slot.

· Release pedal.

Starting Engine

c CAUTION: Avoid injury! Start engine ONLY outdoors or in a well ventilated place.

Exhaust fumes are dangerous.


IMPORTANT: Avoid damage! To prevent engine damage: · DO NOT use any type of starting fluid.

M62737a

1. Sit on seat.

2. Lock park brake.

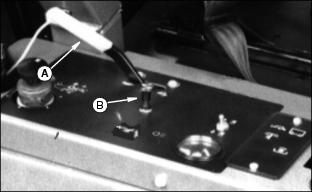

3. Move throttle lever (A) to 1/4 position.

4. When engine is cold, pull choke knob (B) all the way up.

5. Turn key to RUN position. Check indicator lights.


IMPORTANT: Avoid damage! If an indicator light does not work: · Immediately STOP the engine. · Find and correct the cause.

M40509

· Oil pressure indicator (C) will be ON. Buzzer should sound when light is on.

· Battery discharge indicator (D) will be ON.


IMPORTANT: Avoid damage! If engine does not start: · Wait 2 minutes before you try again to avoid starter damage. · Do not operate starter more than 10 seconds.

M62801

6. Turn ignition key (E) to START position (F).

7. As soon as engine starts, release key. The key will return to the RUN position (G).

M62737a

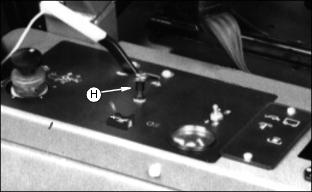

8. After engine starts, gradually push the choke knob (H) down. You may have to leave the choke knob halfway up until the engine warms.

9. Run the engine at half throttle for 5 minutes without putting Front Mower under a full load.

10. As engine warms, gradually push choke knob (H) all the way in.

Idling Engine

The engine needs a large volume of air to keep cool. Keep air intake screen and radiator fins clean. (See Cleaning Air Intake Screen And Radiator in Service - Engine section.)

Avoid unnecessary engine idling.

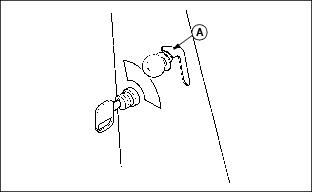

Stopping Engine

NOTE: PTO will automatically DISENGAGE whenever service-park brake is depressed.

M86249a

1. Depress service-park brake pedal and lower park brake knob (A) into long slot.

2. Pedal will stay down when park brake is LOCKED.

3. Lower attachment to ground.

4. Move throttle lever to SLOW position.

M62801

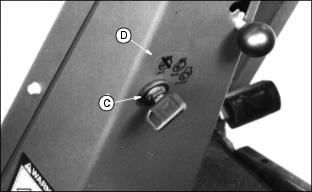

5. Turn ignition key switch (C) to OFF position (D). Remove key.

Stopping Front Mower

M38652

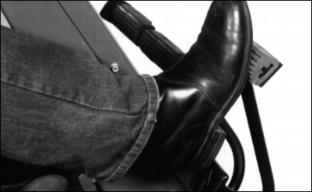

For normal stopping, release foot from speed control pedal.

If unit creeps, push down on service-park brake.

· If unit continues to creep, see you John Deere dealer.

DISENGAGE PTO and LOCK park brake.

Emergency Stopping

c CAUTION: Avoid injury! Avoid quick stops, especially when an attachment is not installed.

M38652

Push hard on service-park brake pedal:

· PTO will automatically DISENGAGE.

· Front Mower will STOP.

Driving Front Mower

c CAUTION: Avoid injury! Keep attachment in DOWN position when you are driving the Front Mower.

· Drive the Front Mower very slowly when an attachment is not installed.

M38644a

1. Start engine. (See Starting Engine in this section.)

2. Push hydraulic lift lever all the way forward to lower attachment to the surface.

M86249

3. Push service-brake pedal all the way down.

4. Put park brake knob in top of slot (A), UNLOCKED position.

5. Release pedal.


IMPORTANT: Avoid damage! Run engine at full throttle for best attachment performance.

6. Move throttle lever all the way forward to FAST position.

M39483

7. To travel forward:

· Slowly push speed control pedal down:

- The farther you push the pedal down the faster the Front Mower will travel.

· Forward travel speed is 0-17 Km/h (0-10.6 mph).

M39484

8. To travel in reverse:

· Let Front Mower slow down from forward travel.

· Carefully check area behind Front Mower.

· Slowly push speed control pedal down:

- The farther you push the pedal down, the faster the Front Mower will travel.

· Reverse travel speed is 0-8.5 Km/h (0-5.3 mph).

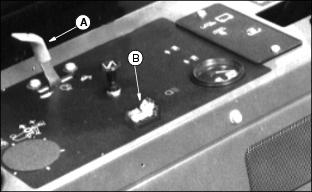

Engaging PTO


IMPORTANT: Avoid damage! To prevent engine from stopping and possible damage to electric clutch: · Engage PTO at half engine speed.

· (Serial number 150,001 - 160,000)

NOTE: Front mowers with serial numbers of 150,001 - 160,000 have a three-position rocker switch to engage the PTO.

1. Push throttle lever (A) to mid-postion.

M72306a

2. Push front of PTO switch (B) down to engage PTO.

3. Push throttle lever (A) all the way forward to operate engine at maximum speed.

· (Serial number 160,001 - )

NOTE: Front mowers with serial number 160,001 and up have a three-position toggle switch to engage the PTO.

1. Push throttle lever (A) to mid-postion.

M723068

2. Pull up on toggle switch (B).

3. Hold switch up and push completely forward to engage PTO.

4. Release toggle switch.

5. Push throttle lever (A) all the way forward to operate engine at maximum speed.

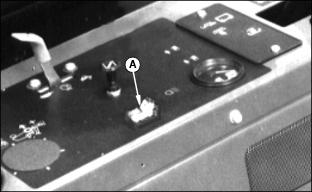

Disengaging PTO

· (Serial number 150,001 - 160,000)

NOTE: Front mowers with serial numbers of 150,001 - 160,000 have a three-position rocker switch to engage the PTO.

M72306a

Push rear of PTO switch (A) down or depress service park brake pedal to DISENGAGE PTO.

· (Serial number 160,001 - )

NOTE: Front mowers with serial number 160,001 and up have a three-position toggle switch to engage the PTO.

M72306b

Push toggle switch (A) to the rear or depress service park brake pedal to disengage PTO.

Using Turn Brake Pedals

c CAUTION: Avoid injury! To prevent tipping:

· Do not apply turn brake pedals at high speeds when making a turn; slow down.

Turn brake pedals can be used for tighter turns.

Using the turn brake pedals may also avoid unnecessary backing of Front Mower.

To make a tighter left turn:

M78391

· Push down on turn brake pedal (A).

To make a tighter right turn:

· Push down on turn brake pedal (B).

Operating Differential Lock

c CAUTION: Avoid injury! Do not LOCK differential at high speed or turn Front Mower when differential is LOCKED.

M38653

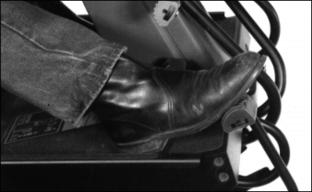

LOCK the differential for better traction on slopes and in slippery places.

To lock differential:

· Push pedal down.

· Differential will stay LOCKED as long as you hold pedal down or as long as wheel slip is unequal.

To UNLOCK differential:

· Release pedal.

Dismounting Front Mower

Before you dismount, always:

· STOP Front Mower.

· DISENGAGE PTO.

· Lower Attachment to ground.

· LOCK park brake.

· STOP engine.

· Remove key.

· Use step (A) to dismount safely.

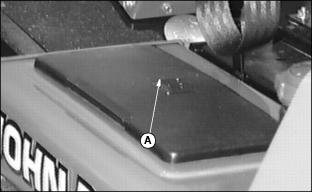

Using Tool Box

M78399

Lift plastic cover (A).

Store operator's manual and necessary hand tools in tool box.

Close cover.

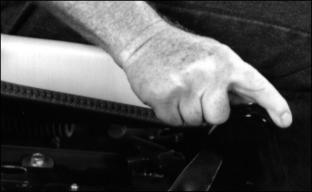

Using Cruise Control

NOTE: The Cruise control operates only in forward travel.

To ENGAGE cruise control:

M40975

· Hold cruise control lever (A) up.

· Push forward speed control pedal at least 1/3 of the way down.

M39483

· Remove foot from forward speed control pedal.

· Remove hand from cruise control lever.

To DISENGAGE cruise control:

· Tap forward speed control pedal.

· Pull down on cruise control lever OR

· Depress service-park brake pedal.

Operate Front Mower in a large, open area to learn how the controls work.

Using Weight Transfer Valve

1. With engine running, push hydraulic lift lever completely forward to FLOAT position.

M62737a

2. Turn valve lock knob (A) counterclockwise to unlock adjusting knob (B).

3. Turn adjusting knob (B) clockwise until mower or other attachment lifts off the ground.

4. Turn adjusting knob (B) counterclockwise slowly until mower front wheels or other attachment just touches the ground; then turn knob slightly counterclockwise.

5. Turn knob (A) clockwise to lock adjusting knob.

6. Operate mower or other attachment over uneven terrain at desired travel speed and observe mower front wheels or front of other attachment. If wheels or attachment do not follow ground contour, operation will be affected. To correct this condition, do Step 7 and 8.

7. Turn valve lock knob (A) counterclockwise to UNLOCK valve.

8. Turn adjusting knob (B) clockwise slightly until mower front wheels or attachment follow ground contour.

9. Turn valve lock knob clockwise to LOCK position after final adjustment

Using Reserve Fuel System

The F932 Front Mower is equipped with two fuel tanks. Avoid letting engine run out of fuel, or you may have to bleed the fuel system.

Before each use, check level in fuel tanks:

M62737a

· Move switch (A) to the left. Check fuel gauge (B) for proper fuel level in left tank.

· Move switch to the right to check right tank.

M38299

If engine starts to stall, move fuel supply lever (C) to other fuel tank position:

· Move switch to the "L" position. This will let you use fuel from the left tank.

· Move switch to the "R" position. This will let you use fuel from the right tank.

Use most of the fuel from one tank before switching to the other tank.

When one tank is nearly empty, fill it as soon as possible.

To stop fuel from getting into the engine: move fuel supply lever between "R" and "L" position.

DAILY OPERATING CHECKLIST

TESTING SAFETY SYSTEMS

c CAUTION: Avoid injury! Engine exhaust fumes can cause sickness or death.

· If it is necessary to run an engine in an enclosed area, remove the exhaust fumes for the area with an exhaust pipe extension.

· If you do not have an exhaust pipe extension, open the doors and get outside air into the area.

Use the following checkout procedure to check for normal operation of tractor.

If there is a malfunction during one of these procedures, DO NOT operate machine. (See your John Deere dealer for service.)


IMPORTANT: Avoid damage! Tests 1 and 2 are performed WITHOUT the engine running.

Perform all tests in a clear open area. Keep bystanders away.

Test 1

Check operation of indicator lights:

· Turn key to RUN position.

M38684a

· LOOK: Indicator lights (A) and (B) must light.

· If one indicator does not light, see Replacing Indicator Light Bulb in SERVICE-ELECTRICAL section.

· If new indicator bulb does not light or no indicators work, see your John Deere dealer.

Test 2

c CAUTION: Avoid injury! Prevent bodily injury. If test fails, the engine may start and tractor may move.

Test brake switch:

1. Unlock park brake and release brake pedal.

2. Dismount and stand to the side of the machine.

3. Turn key to START position.

4. Engine must not crank.

Test 3

c CAUTION: Avoid injury! Prevent bodily injury. If test fails, the engine may start and tractor may move.

Test PTO switch:

NOTE: Operator must be on the seat. Engine is not running and park brake and PTO are disengaged.

1. Depress park brake pedal and start engine.

2. Engage PTO.

3. Push down on park brake pedal. PTO MUST STOP.

4. Release park brake. PTO MUST NOT RESTART automatically after releasing park brake. PTO may be restarted only by engaging the PTO switch.

Test 4

Test seat switch:

1. First part of test:

· Start engine. Run engine at MAXIMUM engine speed.

· Unlock park brake and release brake pedal.

· Put PTO switch lever in ON position.

M34512

· Raise up off seat. DO NOT get off tractor.

· Engine should begin to die. PTO should immediately SHUT OFF and mower blades should STOP.

2. Second part of test:

· DISENGAGE PTO.

· Start engine.

· UNLOCK brake.

M34512

· Raise up off seat. DO NOT get off tractor.

· Engine should STOP.

3. Third part of test:

· DISENGAGE PTO.

· Start engine.

· LOCK park brake

· Raise up off seat. DO NOT get off tractor.

· Engine should continue to run.

Using Liquid Weight

Liquid weight may be used along with front and rear cast iron weights.

Add the same amount of liquid weight to each front or each rear tire.

A tire with liquid weight needs an inner tube.

Use the correct amount of calcium chloride (CaCl2) as shown in the chart to prevent water from freezing.


Liquid Weight Per Tire (75 Percent Filled)
Tire Size	Slush Free at -12°F (-24.4°C) Solid at -52°F (-46.7C) Approx. 3.5 lb CaCl2Per Gal. Water	Slush Free at -53°F(-47.2°C) Solid -62°F (-52.2°C) Approx 5 lb CaCl2Per Gal. Water
20 x 8.00-10	18 kg (39 lb)	20 kg (43.5 lb)
23 x 8.50-12	28 kg (61 lb)	31 kg (69 lb)
15 x 6.00-6	9 kg (20 lb)	10 kg (22 lb)
16 x 6.50-8	11 kg (24 lb)	12 kg (27 lb)

Using Rear Wheel Weights (Optional)

M38322

Install rear weights to increase stability, steering, and help prevent rear-end tip up.

Installation instructions are included with weights.

Using Rear Frame And Front Wheel Weights (Optional)

Rear frame weights are recommended for use with attachments listed below.

Installation instructions are included with weights.


Type Of Attachment	No. Of Weights
50-Inch Mower	0
60-Inch Mower	0
60-Inch Rear Discharge Mower	2
72-Inch Mower	2
76-Inch Mower	6
46-Inch Snowthrower	2
47-Inch Snowthrower	4
54-Inch Blade	0
246 Rotary Broom	6

M34166

Install front wheel weights when operating on slopes or slippery surfaces to increase traction, stability, braking and steering control.

One 22 kg (48 lb) weight can be attached to each wheel.

Installation instructions are included with weights.

Transporting Front Mower On A Trailer


IMPORTANT: Avoid damage! To prevent damage to transmission: · DO NOT pull or push the Front Mower a long distance. · Transport the machine on a heavy-duty trailer. · DO NOT pull Front Mower behind any other vehicle.

M33766

Use a heavy duty trailer to transport your machine.

1. Drive machine forward onto the trailer. Lower any attachments to the trailer deck.

2. Lock the park brake.

3. Use heavy-duty straps, chains, or cables to fasten machine to the trailer:

· Both FRONT and REAR straps MUST BE directed down and outward from machine.

NOTE: Do Not use any part of ROPS for anchoring unit.

M74699

4. Trailer must have signs and lights required by law.

5. Be sure Front Mower hood is latched securely.

6. Fasten hood with hood strap.

Pushing Front Mower


IMPORTANT: Avoid damage! Do not tow the Front Mower.

To move Front Mower when engine
is not running:

· Lift seat.

M40516

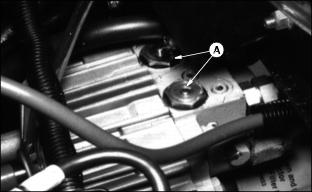

· Push down two buttons (A) to disconnect transmission.

· UNLOCK service park brake.

· Push Front Mower to desired location.

· Two buttons will come back up when you start engine.

Using Drawbar Hitch (Optional)

c CAUTION: Avoid injury! A safety chain will help control drawn equipment should it accidentally separate from the drawbar while transporting. Using the appropriate adapter parts, attach the chain to the Front Mower drawbar support or other specified anchor location. Provide only enough slack in the chain to permit turning.

See your John Deere dealer for a chain with a strength rating equal to or greater than the gross weight of the towed machine.

Use the drawbar hitch to pull light trailers or other attachments.

The maximum towed weight that can be used with the drawbar hitch is 409 kg (900 lbs).

The maximum tongue weight must not exceed 45 kg (100 lbs).

Avoid Damage To Plastic And Painted Surfaces

· Insect repellent spray may damage plastic and painted surfaces. Do not spray insect repellent near machine.

· Be careful not to spill fuel on machine. Fuel may damage surface. Wipe up spilled fuel immediately.
