Specifications
Engine
Type
|
Honda, GX 120
|
Cycle
|
4
|
Piston Displacement
|
118 cc (7.2 cu in.)
|
Maximum Output
|
3.1 kW (4.0 hp) at 4000 rpm
|
Direction of Rotation of Output Shaft
|
Counterclockwise viewed from shaft side
|
Inclination Limit
|
Tilted up to 25 degrees in any direction
|
Fuel
Type
|
See Filling Fuel Tank in the
Service - Engine section.
|
Tank Capacity
|
2.5 L (2.6 U.S. qt)
|
Oil
Type
|
See Engine Oil in the
Service - Engine section.
|
Capacity
|
0.6 L (0.6 U.S. qt)
|
Ignition
Type
|
Electronic
|
Spark Plug
Gap
|
0.7-0.8 mm (0.028-0.031 in.)
|
Spark Plug
Torque
|
25 N·m (18 lb-ft)
|
Cutting Unit
Cutting Width
· 180A
· 220A
|
457 mm (18 in.)
559 mm (22-in.)
|
Cutting Height:
(Minimum):
· Standard 3.0 mm Bed Knife
· Optional 2.5 mm Bed Knife
|
3.2 mm (1/8-in.)
2.8 mm (7/64-in.)
|
Cutting Height:
(Maximum)
|
22.2 mm (7/8-in.)
|
Frequency of Clip
|
5 mm (.195-in.)
|
Clutches:
· Transport
· Cutter
· Brush\GTC
|
Belt Tension
Jaw-Type clutch ON/OFF
Gear engagement disconnecting
|
Reel:
· Diameter
· Number of Blades
· Material
· Bed Knife
|
127 mm (5-in.)
11
Special hardened alloy
3.5 mm (0.138-in.) thick x 560 mm (22-in.) long
|
Cutting Unit (Continued)
Rotary Brush and GTC (Optional):
· Brush
· Greens Tender
Conditioner
· Material of Vertical Cutter Blades
· Adjustable Brush or Cutter Height
· Gear Drive (Optional)
|
Interlocked w/reel, rotation in reverse direction, 60 mm (2-3/8-in.) diameter, nylon
60 mm (2-3/8-in.) diameter, 75 blades
Special hardened carbon steel star-shaped 0.6 mm (1/32-in.) thick
10 mm (13/32-in.) below or 5.5 mm (7/32-in.) above cut
Gear driven from reel shaft opposite direction of reel rotation, powers brush or cutter
|
Traction Drum
|
Dual aluminum traction
|
Traveling Device (Maximum Forward Speed):
· Roller (Rear)
· Transport Wheels
|
5.5 Km/h (3.4 mph)
9.2 Km/h (5.5 mph)
|
Dimensions
Length
(With tires installed.)
|
94 mm (37-in.)
|
Width (With tires installed.)
|
946 mm (37-1/4-in.)
|
Height
(With tires installed.)
|
1190 mm (46.8-in.)
|
Weight
(Less brush drive, transport wheels, and with grass catcher)
|
180A--98 kg (216 lb)
220A--99.5 kg (219 lb)
|
Miscellaneous
Engine Dry Weight
|
12.0 kg (26.5 lb)
|
Differential Drive Capacity
|
0.5 L ( 1 pt)
|
Transport Tires
(Quick Detachable):
· Tread Width
(Width of mower with tires.)
· Tires
· Pressure (Standard Pneumatic)
|
Approximately 880 mm (34-5/8-in.)
4.1-6 (2 pr) (Tubeless)
125-140 kPa (18-20 psi)
|
Park Brake
|
Band-type brake, lever activation
|
(Specifications and design subject to change without notice.)

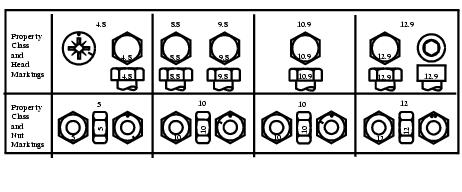

Metric Bolt and Cap Screw Torque Values
|
Class 4.8
|
Class 8.8 or 9.8
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
Size
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
M6
|
48
|
3.5
|
6
|
4.5
|
9
|
6.5
|
11
|
8.5
|
M8
|
12
|
8.5
|
15
|
11
|
22
|
16
|
28
|
20
|
M10
|
23
|
17
|
29
|
21
|
43
|
32
|
55
|
40
|
M12
|
40
|
29
|
50
|
37
|
75
|
55
|
95
|
70
|
M14
|
63
|
47
|
80
|
60
|
120
|
88
|
150
|
110
|
M16
|
100
|
73
|
125
|
92
|
190
|
140
|
240
|
175
|
M18
|
135
|
100
|
175
|
125
|
260
|
195
|
330
|
250
|
M20
|
190
|
140
|
240
|
180
|
375
|
275
|
475
|
350
|
M22
|
260
|
190
|
330
|
250
|
510
|
375
|
650
|
475
|
M24
|
330
|
250
|
425
|
310
|
650
|
475
|
825
|
600
|
M27
|
490
|
360
|
625
|
450
|
950
|
700
|
1200
|
875
|
M30
|
675
|
490
|
850
|
625
|
1300
|
950
|
1650
|
1200
|
M33
|
900
|
675
|
1150
|
850
|
1750
|
1300
|
2200
|
1650
|
M36
|
1150
|
850
|
1450
|
1075
|
2250
|
1650
|
2850
|
2100
|

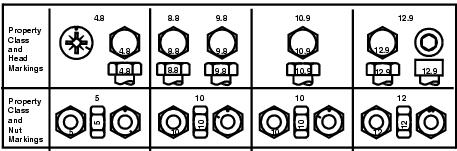

Metric Bolt and Cap Screw Torque Values (Continued)
|
Class 10.9
|
Class 12.9
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
Size
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
M6
|
13
|
9.5
|
17
|
12
|
15
|
11.5
|
19
|
14.5
|
M8
|
32
|
24
|
40
|
30
|
37
|
28
|
47
|
35
|
M10
|
63
|
47
|
80
|
60
|
75
|
55
|
95
|
70
|
M12
|
110
|
80
|
140
|
105
|
130
|
95
|
165
|
120
|
M14
|
175
|
130
|
225
|
165
|
205
|
150
|
260
|
109
|
M16
|
275
|
200
|
350
|
225
|
320
|
240
|
400
|
300
|
M18
|
375
|
275
|
475
|
350
|
440
|
325
|
560
|
410
|
M20
|
530
|
400
|
675
|
500
|
625
|
460
|
800
|
580
|
M22
|
725
|
540
|
925
|
675
|
850
|
625
|
1075
|
800
|
M24
|
925
|
675
|
1150
|
850
|
1075
|
800
|
1350
|
1000
|
M27
|
1350
|
1000
|
1700
|
1250
|
1600
|
1150
|
2000
|
1500
|
M30
|
1850
|
1350
|
2300
|
1700
|
2150
|
1600
|
2700
|
2000
|
M33
|
2500
|
1850
|
3150
|
2350
|
2900
|
2150
|
3700
|
2750
|
M36
|
3200
|
2350
|
4050
|
3000
|
3750
|
2750
|
4750
|
3500
|
Metric Bolt and Cap Screw Torque Values (Continued)
DO NOT use these values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a 10% variance. Check tightness of fasteners periodically. DO NOT use air powered wrenches.
Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.
Fasteners should be replaced with the same grade. Make sure fasteners threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.
When bolt and nut combination fasteners are used, torque values should be applied to the NUT instead of the bolt head.
Tighten toothed or serrated-type lock nuts to the full torque value.
a"Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated without any lubrication.

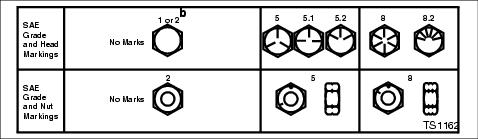

Unified Inch Bolt and Cap Screw Torque Values
Unified Inch Bolt and Cap Screw Torque Values (Continued)
|
Grade 1
|
Grade 2b
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
SIZE
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
1/4
|
3.7
|
2.8
|
4.7
|
3.5
|
6
|
4.5
|
7.5
|
5.5
|
5/16
|
7.7
|
5.5
|
10
|
7
|
12
|
9
|
15
|
11
|
3/8
|
14
|
10
|
17
|
13
|
22
|
16
|
27
|
20
|
7/16
|
22
|
16
|
28
|
20
|
35
|
26
|
44
|
32
|
1/2
|
33
|
25
|
42
|
31
|
53
|
39
|
67
|
50
|
9/16
|
48
|
36
|
60
|
45
|
75
|
56
|
95
|
70
|
5/8
|
67
|
50
|
85
|
62
|
105
|
78
|
135
|
100
|
3/4
|
120
|
87
|
150
|
110
|
190
|
140
|
240
|
175
|
7/8
|
190
|
140
|
240
|
175
|
190
|
140
|
240
|
175
|
1
|
290
|
210
|
360
|
270
|
290
|
210
|
360
|
270
|
1-1/8
|
470
|
300
|
510
|
375
|
470
|
300
|
510
|
375
|
1-1/4
|
570
|
425
|
725
|
530
|
570
|
425
|
725
|
530
|
1-3/8
|
750
|
550
|
950
|
700
|
750
|
550
|
950
|
700
|
1-1/2
|
1000
|
725
|
1250
|
925
|
990
|
725
|
1250
|
930
|
Unified Inch Bolt and Cap Screw Torque Values (Continued)
|
Grade 5, 5.1 or 5.2
|
Grade 8 or 8.2
|
|
Lubricateda
|
Drya
|
Lubricateda
|
Drya
|
SIZE
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
N·m
|
lb-ft
|
1/4
|
9.5
|
7
|
12
|
9
|
13.5
|
10
|
17
|
12.5
|
5/16
|
20
|
15
|
25
|
18
|
28
|
21
|
35
|
26
|
3/8
|
35
|
26
|
44
|
33
|
50
|
36
|
63
|
46
|
7/16
|
55
|
41
|
70
|
52
|
80
|
58
|
100
|
75
|
1/2
|
85
|
63
|
110
|
80
|
120
|
90
|
150
|
115
|
9/16
|
125
|
90
|
155
|
115
|
175
|
130
|
225
|
160
|
5/8
|
170
|
125
|
215
|
160
|
215
|
160
|
300
|
225
|
3/4
|
300
|
225
|
375
|
280
|
425
|
310
|
550
|
400
|
7/8
|
490
|
360
|
625
|
450
|
700
|
500
|
875
|
650
|
1
|
725
|
540
|
925
|
675
|
1050
|
750
|
1300
|
975
|
1-1/8
|
900
|
675
|
1150
|
850
|
1450
|
1075
|
1850
|
1350
|
1-1/4
|
1300
|
950
|
1650
|
1200
|
2050
|
1500
|
2600
|
1950
|
1-3/8
|
1700
|
1250
|
2150
|
1550
|
2700
|
2000
|
3400
|
2550
|
1-1/2
|
2250
|
1650
|
2850
|
2100
|
3600
|
2650
|
4550
|
3350
|
DO NOT use these values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a 10% variance. Check tightness of fasteners periodically. DO NOT use air powered wrenches.
Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.
Fasteners should be replaced with the same grade. Make sure fastener threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.
Tighten toothed or serrated-type lock nuts to the full torque value.
a "Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated without any lubrication.
b "Grade 2" applies for hex cap screws (not hex bolts) up to 152 mm (6-in.) long. "Grade 1" applies for hex cap screws over 152 mm (6-in.) long, and for all other types of bolts and screws of any length.
|
