Controls
Engine Controls

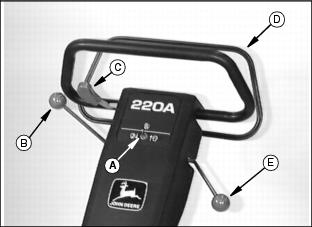

A - Run/Off Switch - Runs and stops engine
B - Travel Clutch Lever - Engages drive clutch
C - Throttle Lever - Adjusts engine speed and rate-of-travel
D - Operator Presence Bail - Stops all moving parts and engages drive clutch
E - Park Brake Lever - Stops reel from turning

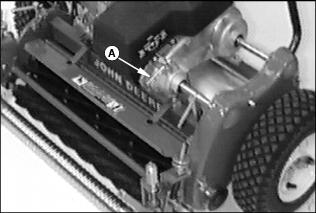

A - Choke Lever - Chokes engine for starting
B - Fuel Shut-Off - Controls fuel supply to engine
Miscellaneous Controls

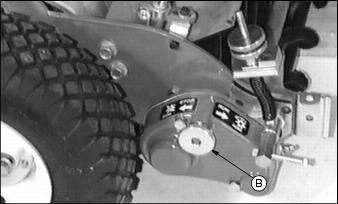

A - Reel Clutch Handle - Runs and stops reel
