Service Lubrication
Grease

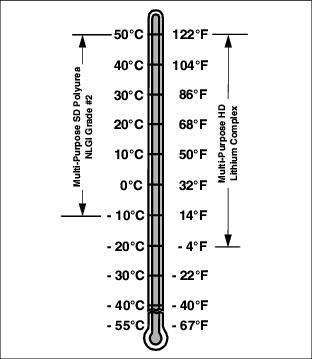

Use grease based on the expected air temperature range during the service interval.
The following greases are preferred:
· John Deere Multi-Purpose SD Polyurea Grease.
· Meets NLGI Grade #2 Standard JDM J13E4
· John Deere Multi-Purpose HD Lithium Complex Grease.
Other greases may be used are:
· SAE Multipurpose EP Grease with 3 to 5 percent molybdenum disulfide.
Lubricating Rear Wheel Bearing and Spindle
1. Park machine safely. (See Parking Safely in the Safety section.)

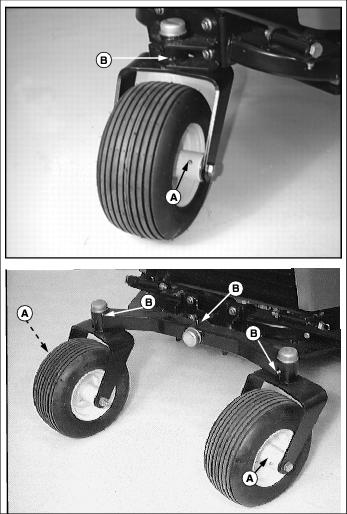

Picture Note: Top photo shows front mower equipped with a single rear wheel option. Bottom photo shows front mower equipped with a wide stance dual wheel option.
2. Lubricate rear wheel bearing(s) (A) and spindle(s) (B).

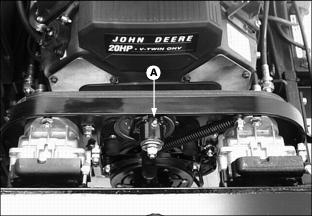

Lubricate Pump Drive Belt Tensioner
1. Park machine safely. (See Parking Safely in the Safety section.)
