Controls

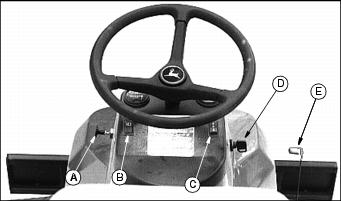

Dash Controls
A - Choke Lever - Chokes engine for starting
B - Light Switch - Push to engage lights
C - Power Rake Lift - Raises and lowers rake
E - Park Brake Lever - Engages and disengages park brake

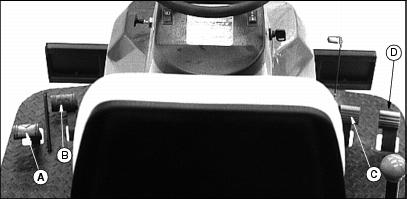

Foot Controls
A - Reverse Travel Pedal - Backs machine
B - Forward Travel Pedal - Starts machine forward travel
C - Brake Pedal - Stops machine
D - Accelerator Pedal - Increases machine travel speed

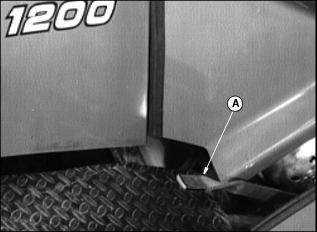

Platform Controls
A - Differential Lock Pedal - Push for improved traction
