Controls

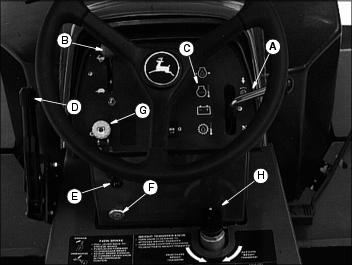

Dash/Platform Controls
A - Mow/Lift Levers - Raises/lowers mowers
B - Throttle Lever - Controls engine speed
C - Indicator Lights - Monitors machine functions
D - Park Brake Lever - Engages park brake
E - Choke Lever - Chokes engine for starting
F - PTO Switch - Engages attachments
H - Weight Transfer Valve - Distributes machine weight

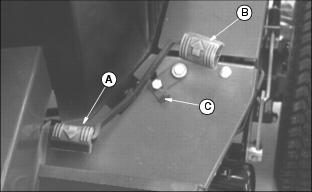

Foot Controls
A - Reverse Travel Pedal - Backs machine
B - Forward Travel Pedal - Starts machine forward travel
C - Speed Limiter (2WD Only) - Limits forward speed
Miscellaneous Controls

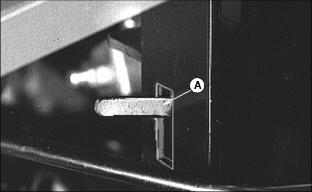

A - Free-Wheeling Lever - Allows machine to be moved without the engine running
