Operating Cutting Unit


IMPORTANT: Avoid damage! When mowing tall grass in rough terrain, it is recommended to leave the front rollers on to protect the reels from striking any unseen objects.

When cutting grass taller than approximately 38 mm (1-1/2 in.), the front roller tends to knock down grass affecting the quality of cut. In these conditions, it may be necessary to operate with cutting units in fixed position without a roller.

NOTE: The fixed position is recommended for smooth areas only, such as athletic fields, level parks, etc.

M56207

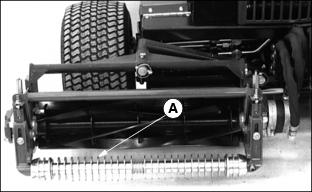

1. Remove front roller (A).

2. Remove scraper, if equipped.

M56202

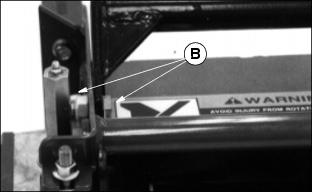

3. Install 1/2 x 1 in. cap screw, and nut, from bag of hardware supplied with machine, to fixed position (B) on both sides of all three cutting units.

Cutting Shorter Grass

When cutting grass under approximately 38 mm (1-1/2 in.) Place the cutting unit in the FLOATING position.

M56207

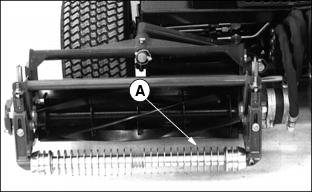

1. Install front roller (A).

2. Install scraper, if equipped. (See instruction sheet provided for scraper kit).

M56203

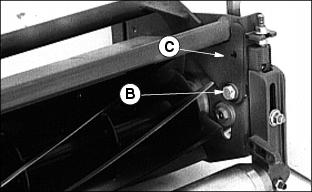

3. Remove 1/2 x 1 in. cap screw and nut from FIXED position (C). Install
1/2 x 3 in. cap screw if not done so already. Cap screw (B) can remain in place, it is (C) that has to be removed depending on mowing conditions.

NOTE: Cutting grass under 38 mm (1-1/2 in.) in dry conditions a grooved roller may be desirable.

NOTE: In wet/muddy conditions or in new growth areas a smooth roller may be the choice.

Grass Deflector

M56238

The cutting units come with a grass deflector mounted on the rear of the cutting units.

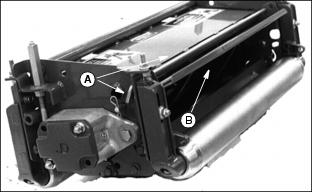

NOTE: For ease of changing, the bent end of rod (A) should be located opposite the motor end of the cutting units.

M56237

With the deflector (B) down as shown the grass will be deflected towards the front of the cutting units.

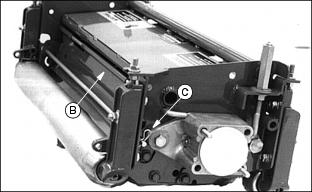

Remove pull pin (C) and rod (A) and move deflector (B) up, to position shown for rear discharge of grass clippings.

Replace rod (A) and pull pin (C).

Engaging Reel Drive

M56178

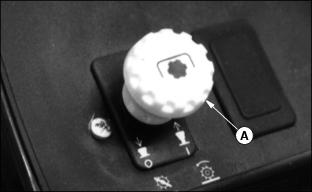

1. Pull PTO switch (A) up to the ON position.


IMPORTANT: Avoid damage! Run engine at full throttle for best performance.

2. Move throttle all the way forward to fast (r) position.

M56181

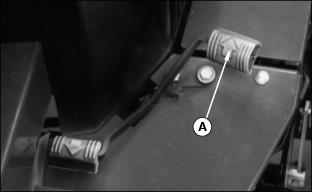

3. Slowly push pedal (A) down to begin forward mowing.

M56176

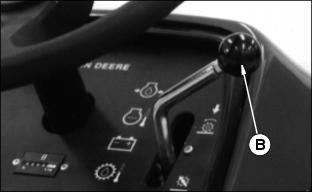

4. Push lift/mow lever (B) forward to LOWER cutting units and start reel rotation.

· Pull lift/mow lever (B) back to RAISE cutting units and stop reel rotation. Hold in this position until the rear cutting unit is fully raised.

· Remove foot from pedal (A) to stop forward travel.

Dismounting To Inspect Or Unplug Reels

NOTE: If engine and cutting units are running, engine and cutting units will stop when operator lifts off seat, if the park brake is not set.

c CAUTION: Avoid injury! Avoid Injury From Contacting Blades

Before you dismount to unplug or service cutting units:

· STOP the engine.

· LOCK the park brake.

· DISENGAGE cutting units to stop reels.

· Remove key.

· Wait for reels to STOP.

Keep hands, feet and clothing away from cutting units when engine is running.

Shut off PTO when you are not mowing.

1. Stop machine.

2. Engage the park brake.

3. Push PTO switch down to the OFF position.

4. Lower cutting units to the ground.

5. Stop the engine.

6. Remove the key.

7. Wait until allped.
