Service - Lubrication
Grease
Use grease based on the expected air temperature range during the service interval.
The following greases are preferred:
Chassis and Rollers
ˇ John Deere Special Purpose HD Water Resistant Grease.
ˇ John Deere Multi-Purpose HD Lithium Complex Grease.
Cutting Units
ˇ John Deere Cotton Picker Spindle Grease.
Other greases that can be used:
ˇ SAE Multi-Purpose EP Grease with 3 to 5 percent molybdenum disulfide.
ˇ SAE Multi-Purpose EP Grease.
Lubricate Greensmower
c CAUTION: Avoid injury! To avoid injury, DO NOT clean, lubricate, or adjust machine while it is running.
|
NOTE: DO NOT over lubricate. Excess grease could fall from mower during operation.
Clean grease fitting before lubricating. Replace missing or broken grease fittings immediately.
Lubricate Rear Steering Wheel
ˇ Lubricate rear axle pivot spindle grease fitting (A) with John Deere Special Purpose HD Water Resistant Grease or John Deere Multi-Purpose HD Lithium Complex Grease.
ˇ Lubricate rear wheel bearings grease fitting (B) with John Deere Multi-Purpose HD Lithium Complex Grease.
Lubricate Neutral Eccentric
ˇ Raise operator seat and secure in the open position.
ˇ Lubricate neutral eccentric grease fitting (A) with John Deere Multi-Purpose HD Lithium Complex Grease.
Lubricate Front Lift Arm Pivots
ˇ Lubricate right and left lift arm pivot grease fittings (A) with John Deere Special Purpose HD Water Resistant Grease or John Deere Multi-Purpose HD Lithium Complex Grease.
Lubricate Center Lift Arm Pivot
ˇ Lubricate center lift arm pivot grease fitting (A) with John Deere Special Purpose HD Water Resistant Grease or John Deere Multi-Purpose HD Lithium Complex Grease.
Lubricate Cutting Units

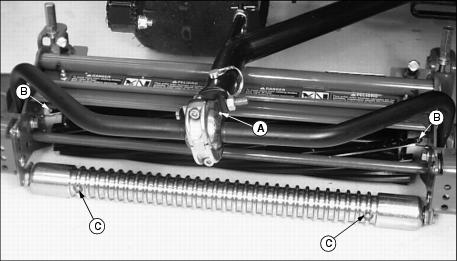

Lubricate Yoke Pivot, Roller Bearings and Front Roller
ˇ Lubricate yoke pivot grease fitting (A) with John Deere Special Purpose HD Water Resistant Grease or John Deere Multi-Purpose HD Lithium Complex Grease.
ˇ Lubricate reel roller bearing grease fittings (B) with John Deere Special Purpose HD Cornhead Grease.
ˇ Lubricate front roller grease fittings (C) with John Deere Special Purpose HD Water Resistant Grease or John Deere Multi-Purpose HD Lithium Complex Grease.
ˇ Repeat procedure for other cutting units.

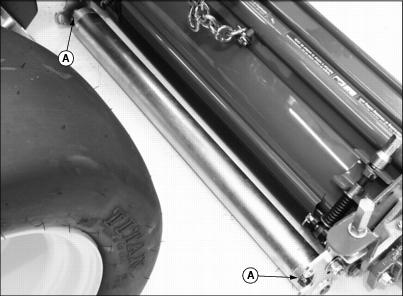

Lubricate Rear Roller
ˇ Lubricate rear roller grease fittings (A) with John Deere Special Purpose HD Water Resistant Grease or John Deere Multi-Purpose HD Lithium Complex Grease.
ˇ Repeat procedure for other cutting units.
Lubricate (Optional) Greens and Turf Conditioner Reel

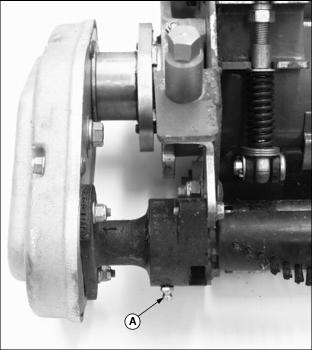

ˇ Lubricate both GTC grease fittings (A) with John Deere Special Purpose HD Water Resistant Grease or John Deere Multi-Purpose HD Lithium Complex Grease.
ˇ Repeat procedure for other cutting units.
Lubricate (Optional) Rear Roller Powered Brush
ˇ Lubricate both brush grease fittings (A) with John Deere Special Purpose HD Water Resistant Grease or John Deere Multi-Purpose HD Lithium Complex Grease.
