Specifications

Engine (Gas Model)

Manufacturer Kawasaki

Model Number FD620D

Type ( Liquid-Cooled Gas

Horsepower 14 kW ((18.7 hp)

Displacement (37.7 cc

Cylinders 2

Bore 79 mm ( (3.11 in)

Stroke 68 mm ((2.68 in)

Compression Ratio (9.0:1

Fast Idle RPM ( 50) 3400

Slow Idle RPM ( 50) 1550

Valving OHV

Oil Filter Full Flow, Replaceable

Lubrication Full Pressure

Cooling Liquid

Air Cleaner Foam Precleaner with Paper Element

Engine (Diesel Model)

Manufacturer Yanmar

Model Number 3TNE68

Type (Diesel

Horsepower 15 kW ((19.9 hp)

Displacement ( 47.8 cc

Cylinders 3

Bore 68 mm ( (2.68 in)

Stroke 72 mm ((2.83 in)

Compression Ratio (23:1

Fast Idle RPM ( 50) 3225

Slow Idle RPM ( 50) 1450

Valving OHV

Oil Filter Full Flow, Replaceable

Lubrication Full Pressure

Cooling Liquid

Air Cleaner Primary and Secondary Filters

Fuel System (Gas Model)

Fuel Type Regular Unleaded

Fuel Filter Replaceable Element

Fuel Pump Electric

Fuel System (Diesel Model)

Fuel Type Diesel Fuel

Fuel Filter Replaceable Element

Fuel Pump Mechanical

Electrical System

Type Flywheel, Alternator

Alternator Capacity-Gas ( 16 amp

Alternator Capacity-Diesel (20 amp

Ignition (CDI

Battery Voltage ( 12 volts

Battery Reserve Capacity @ 25 Amps 68 minutes

Cold Cranking Amps @ 0°F (500

Traction Drive

Type Hydraulic Wheel Motors

Wheel Motors Ross

Drive Wheels (Front

Traction Drive (Hydrostatic, 2 Pedal Control

Travel Speed-Forward ( .50) 0-12.9 km/h ( (0-8.0 mph)

Travel Speed-Reverse ( .50) 0-4.8 km/h ((0-3.0 mph)

Travel Speed-Mowing ( .50) 0-7.1 km/h ((0-4.4 mph)

Brakes

Dynamic Braking Hydrostatic-Dual Pedal

Park Brake Dual Disc Type

Park Brake Actuation Foot

Reel Drive

Reel Drive Hydraulic

Pump Gear

Reel Control Valves Electro Hydraulic, One Valve Reel On-Off, and One Valve Raise-Lower

Filtration 10 Micron

Mower Lift Cylinder for Front 2 Units, Cylinder for Center Unit

Mower

Number of Cutting Units 3

Size 55.9 cm ( (22 in.)

Backlapping On Machine-Variable Speed Adjustment Capability

Clip Frequency 4.44 mm ((.175 in.) @ 6.4 km/h ((4.0 mph)

Front Rollers Optional-Smooth or Grooved

Reel Diameter 12.7 cm ((5 in.)

Bed Knife Adjustment Bed knife to Reel

Height-Of-Cut 2.4-22 mm ((3/32-7/8 in.)

Number of Blades 7 or 11

Cutting Unit Drive Direct Hydraulic Motor

Tires


Style	Location	Size	Load Rating
Smooth	Front/Rear	18x10.50-10	2 Ply
Smooth	Front/Rear	20x10.00-10	2 Ply
Soft Trac	Front/Rear	20x10.00-10	4 Ply

Dimensions

Width w/o Reels 1294.9 mm ( (51 in.)

Width w/ Reels 1694.8 mm ( (66.7 in.)

Width w/ Optional Grass Catchers 1847.9 mm ((72.75 in.)

Mowing Width .1574.8 ((62 in.)

Transport Width 1694.8 ((66.7 in.)

Length w/o Reels 2272 mm ( (89.5 in.)

Length w/ Reels 2272 mm ((89.5 in.)

Length w/ Optional Grass Catchers 2630 mm ( (103.5 in.)

Overall Height 1266.9 mm ( (50 in.)

Overall Height w/ Optional ROPS 1940.3 mm ( (76.5 in.)

Ground Clearance w/o Reels (Minimum) 152 mm (6 in.)

Ground Clearance w/ Reels (Minimum) 76 mm (3 in.)

Wheelbase-Front to Rear (Length) 1296.2 mm ( (51 in.)

Wheelbase-Front Tire (Width) 1013 mm ( (40 in.)

Weight-Includes Cutting Units, All Fluids and 18x10.50-10 Tires

Weight-Gas Unit 576 kg ( (1270 lbs)

Weight-Diesel Unit 626 kg ( (1380 lbs)

Fluid Capacities

Fuel Tank 32.2 L ( (8.5 gal)

Cooling System 3.5 L ((3.7 gal)

Crankcase w/ Filter-Gas Unit 2.1 L ((2.2 qt)

Crankcase w/ Filter-Diesel Unit 2.2 L ((2.3 qt)

Hydrostatic and Reel Drive System (Total) 28.8 L ( (7.6 gal)

Hydraulic Reservoir Capacity (Only) 20.4 L ( (5.4 gal)

Recommended Lubricants

Fuel See Filling Fuel Tank in the Service - Miscellaneous section.

Engine Oil-Gas Unit John Deere TURF-GARD®

Engine Oil-Diesel Unit John Deere PLUS-50®

Engine Coolant Ethylene Glycol Base

Transmission Oil John Deere HY-GARD®

Grease John Deere SPECIAL PURPOSE HD WATER RESISTANT GREASE (
John Deere MULTI-PURPOSE HD LITHIUM COMPLEX GREASE (
John Deere SPECIAL PURPOSE HD CORNHEAD GREASE (
John Deere SPECIAL PURPOSE COTTON PICKER SPINDLE GREASE

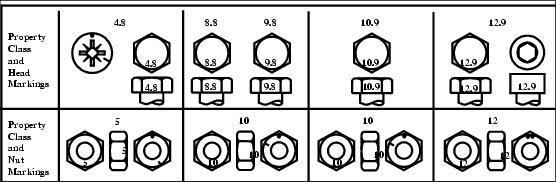

Metric Bolt and Cap Screw Torque Values

MIF


	Class 4.8				Class 8.8 or 9.8
	Lubricateda		Drya		Lubricateda		Drya
Size	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft
M6	4.8	3.5	6	4.5	9	6.5	11	8.5
M8	12	8.5	15	11	22	16	28	20
M10	23	17	29	21	43	32	55	40
M12	40	29	50	37	75	55	95	70
M14	63	47	80	60	120	88	150	110
M16	100	73	125	92	190	140	240	175
M18	135	100	175	125	260	195	330	250
M20	190	140	240	180	375	275	475	350
M22	260	190	330	250	510	375	650	475
M24	330	250	425	310	650	475	825	600
M27	490	360	625	450	950	700	1200	875
M30	675	490	850	625	1300	950	1650	1200
M33	900	675	1150	850	1750	1300	2200	1650
M36	1150	850	1450	1075	2250	1650	2850	2100

MIF


	Class 10.9				Class 12.9
	Lubricateda		Drya		Lubricateda		Drya
Size	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft
M6	13	9.5	17	12	15	11.5	19	14.5
M8	32	24	40	30	37	28	47	35
M10	63	47	80	60	75	55	95	70
M12	110	80	140	105	130	95	165	120
M14	175	130	225	165	205	150	260	109
M16	275	200	350	225	320	240	400	300
M18	375	275	475	350	440	325	560	410
M20	530	400	675	500	625	460	800	580
M22	725	540	925	675	850	625	1075	800
M24	925	675	1150	850	1075	800	1350	1000
M27	1350	1000	1700	1250	1600	1150	2000	1500
M30	1850	1350	2300	1700	2150	1600	2700	2000
M33	2500	1850	3150	2350	2900	2150	3700	2750
M36	3200	2350	4050	3000	3750	2750	4750	3500

DO NOT use these values if a different torque value or tightening procedure is given for a specific application. Torque values listed are for general use only and include a 10% variance. Check tightness of fasteners periodically. DO NOT use air powered wrenches.

Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.

Fasteners should be replaced with the same grade. Make sure fasteners threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.

When bolt and nut combination fasteners are used, torque values should be applied to the NUT instead of the bolt head.

Tighten toothed or serrated-type lock nuts to the full torque value.

a "Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated without any lubrication.

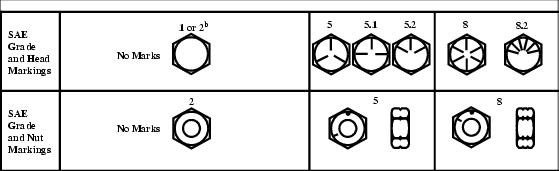

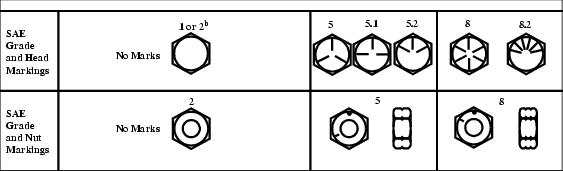

Unified Inch Bolt and Cap Screw Torque Values

MIF


	Grade 1				Grade 2b
	Lubricateda		Drya		Lubricateda		Drya
Size	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft
1/4	3.7	2.8	4.7	3.5	6	4.5	7.5	5.5
5/16	7.7	5.5	10	7	12	9	15	11
3/8	14	10	17	13	22	16	27	20
7/16	22	16	28	20	35	26	44	32
1/2	33	25	42	31	53	39	67	50
9/16	48	36	60	45	75	56	95	70
5/8	67	50	85	62	105	78	135	100
3/4	120	87	150	110	190	140	240	175
7/8	190	140	240	175	190	140	240	175
1	290	210	360	270	290	210	360	270
1-1/8	470	300	510	375	470	300	510	375
1-1/4	570	425	725	530	570	425	725	530
1-3/8	750	550	950	700	750	550	950	700
1-1/2	1000	725	1250	925	990	725	1250	930

MIF


	Grade 5, 5.1, 5.2				Grade 8 or 8.2
	Lubricateda		Drya		Lubricateda		Drya
Size	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft	N·m	lb-ft
1/4	9.5	7	12	9	13.5	10	17	12.5
5/16	20	15	25	18	28	21	35	26
3/8	35	26	44	33	50	36	63	46
7/16	55	41	70	52	80	58	100	75
1/2	85	63	110	80	120	90	150	115
9/16	125	90	155	115	175	130	225	160
5/8	170	125	215	160	215	160	300	225
3/4	300	225	375	280	425	310	550	400
7/8	490	360	625	450	700	500	875	650
1	725	540	925	675	1050	750	1300	975
1-1/8	900	675	1150	850	1450	1075	1850	1350
1-1/4	1300	950	1650	1200	2050	1500	2600	1950
1-3/8	1700	1250	2150	1550	2700	2000	3400	2550
1-1/2	2250	1650	2850	2100	3600	2650	4550	3350

Shear bolts are designed to fail under predetermined loads. Always replace shear bolts with identical grade.

Fasteners should be replaced with the same grade. Make sure fasteners threads are clean and that you properly start thread engagement. This will prevent them from failing when tightening.

Tighten toothed or serrated-type lock nuts to the full torque value.

a"Lubricated" means coated with a lubricant such as engine oil, or fasteners with phosphate and oil coatings. "Dry" means plain or zinc plated without any lubrication.

b"Grade 2" applies for hex cap screws (not hex bolts) up to 152 mm (6-in.) long. "Grade 1" applies for hex cap screws over 152 mm (6-in.) long, and for all other types of bolts and screws of any length.
