Service Lubrication
Grease

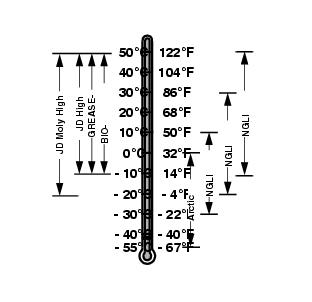

Use grease based on the expected air temperature range during the service interval.
The following greases are preferred:
ˇ John Deere MOLY HIGH TEMPERATURE EP GREASE
ˇ John Deere HIGH TEMPERATURE EP GREASE
Other greases may be used if they meet one of the following:
ˇ SAE Multipurpose EP Grease with a maximum of 5% molybdenum disulfide.
Greases meeting Military Specification MIL-G-10924F may be used as arctic grease.
Grease Locations
c CAUTION: Avoid injury! DO NOT clean, lubricate, or adjust machine while it is running.
|
Clean grease fitting before lubricating.
Replace lost or broken fittings immediately.
NOTE: DO NOT over lubricate. Excess grease could fall from mower during operation.
Grease Locations (Continued)

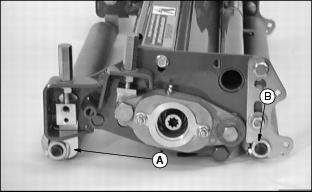

Grease both ends of three rollers.
Grease both ends of three reels.

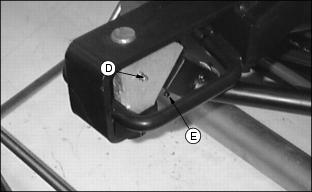

ˇ Left and right front lift arm pivots (D).
ˇ Left and right yoke pivots (E).
Grease Locations (Continued)
Lubricate cutting units (continued):

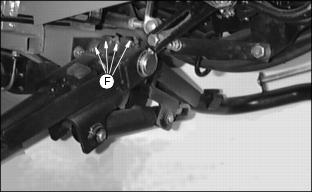

ˇ Left and right front lift arm frame pivots (F).

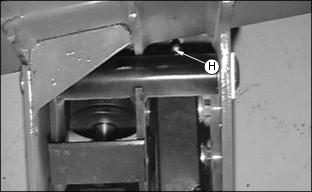

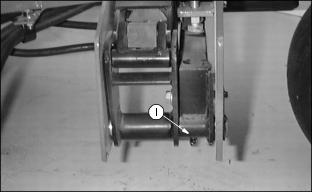

ˇ Center lift arm pivots (H) and (I).
Shield removed for illustration only. It is not necessary to remove shield to lubricate.
