Controls

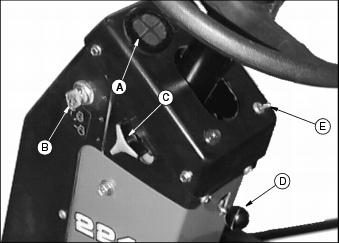

Console Controls
A - Indicator Lights - Monitors machine functions
C - Steering Wheel Adjustment - Adjust steering wheel height
D - Park Brake Knob - Engages park brake
E - Toggle Switch - Activates engine preheat (glow plug)

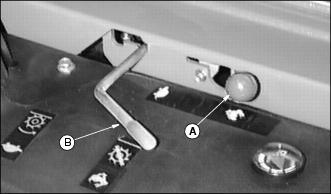

A - Throttle Lever - Controls engine speed
B - Mow/Transport Lever - Mow position to mow. Transport position to transport machine

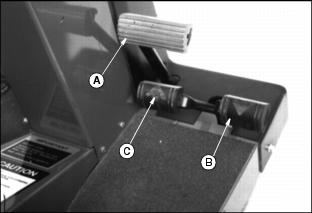

Foot/Platform Controls
A - Park Brake Pedal/Emergency Brake - Stops machine
B - Reverse Travel Pedal - Backs machine
C - Forward Travel Pedal - Starts machine forward travel

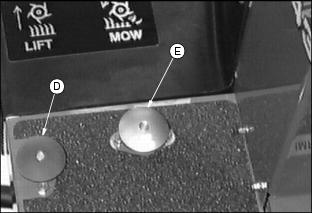

D - Lift Switch - Raises cutting unit
E - Mow Switch - Lowers cutting unit

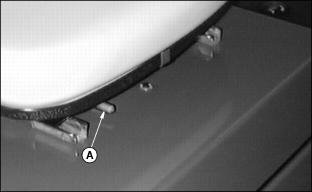

Miscellaneous Controls
A - Seat Adjustment - Moves seat forward and backward

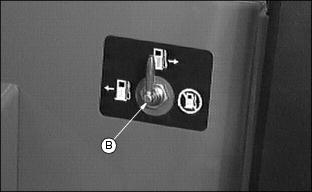

B - Fuel Select Valve - Selects fuel tank

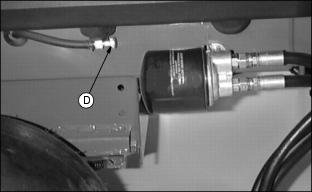

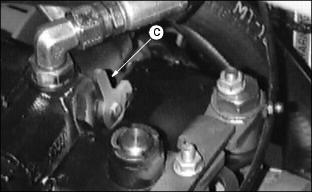

Miscellaneous Controls (Continued)
A - Free-Wheeling Lever - Allows machine to be moved without the engine rumming (located under the seat)
